3x360 Green Beam 3D Laser Level with Bluetooth Connectivity, Cross Line Laser Level Tool Huepar 603CG-BT

$152,439.00
$152,439.00
Sold out


WHY HUEPAR --- We Continue To Commit ACTION


-Adopt the latest technology to take the product quality to the next level
-Consistently provide on-time services to our customers
-Train and develop talented people with strong work ethics to deliver effective performance
-Improve and enhance engineering designs to ensure product performance
-Optimize management systems and increase productivity
-Never forget our customer needs



With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.



603CG-BT 3D Green Laser Level with Bluetooth Specifications:



  • Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
  • Laser Wavelength: 505-520nm
  • Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft.
  • Leveling/Compensation Range: ±4°
  • Working Distance (Line): 130Ft (100 LUX), 200Ft. with Huepar Receiver LR-5RG/LR-6RG
  • Operating Time with Lithium Battery: 7 hours with all laser beams on
  • Operating Time with AA Batteries: 2 hours with all laser beams on
  • Power Source: Li-ion battery&4×AA (LR6) batteries
  • IP Rating: IP54
  • Operation Temperature Range: 14? ~ 113? (-10?~ 45?)
  • Mount Size: 1/4"-20 and 5/8"-11



Note:

  • WARNING - Avoid direct exposure of the laser beam to the eyes.



Line Switching

  • Short press "LASER" button to switch the laser lines.
  • The laser lines can be selected separately according to job requirements.
  • The laser line(s) can be temporarily turned OFF by phone when you need to leave for a while.



Visibility Adjustment

  • The visibility of the laser beam can be adjusted by connecting with the Huepar APP.
  • Slide the brightness bar to the brightness you need.
  • The visibility adjustment function is not applicable after the pulse mode turned on.

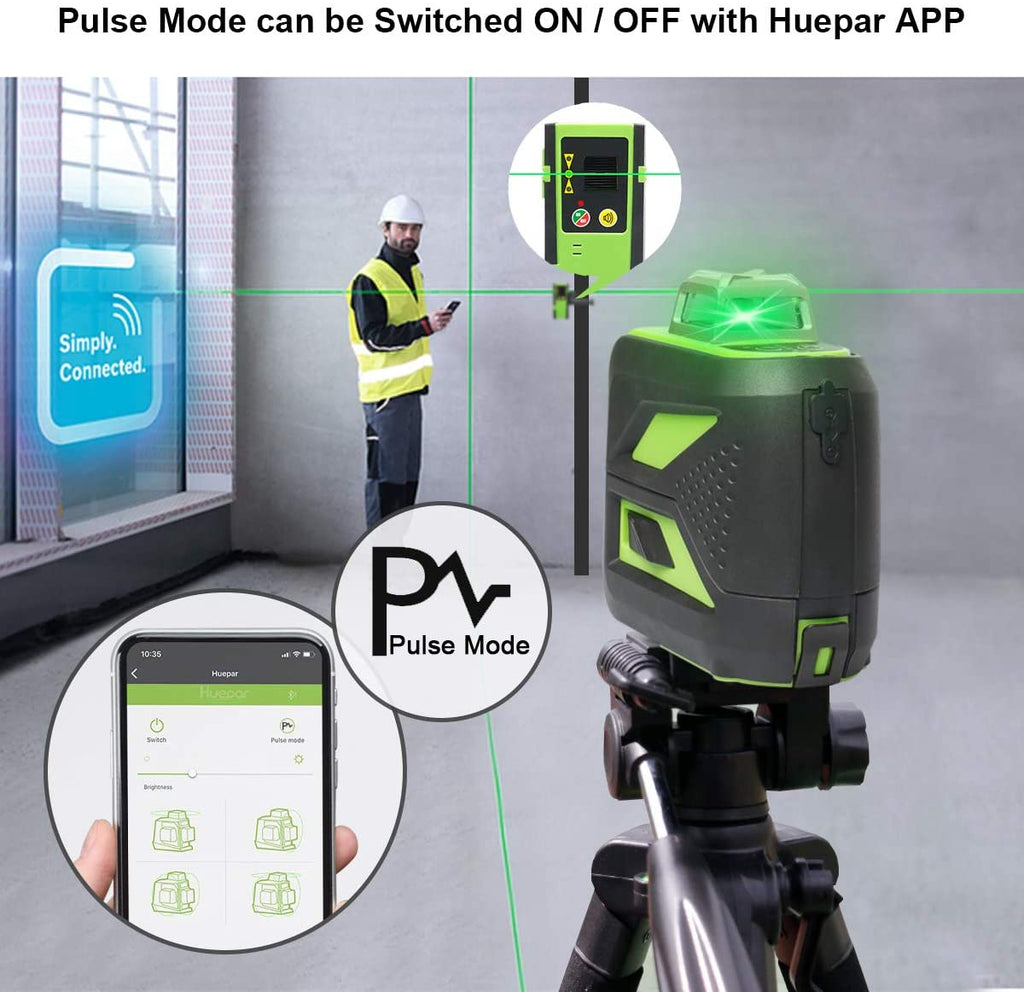

Pulse Mode

  • Short press "PULSE" button to switch ON/OFF the pulse mode. When connecting with Huepar APP, the pulse mode can be switched ON/OFF via APP.
  • Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
  • It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.



Smart Pendulum

  • Self-leveling Mode: When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously to indicate out-of-level condition up to ±4°.
  • Connecting with Huepar APP, a level icon will be displayed to remind user when it is beyond the self-leveling range.
  • Manual Mode: When the pendulum lock is in locked position, manual mode locks laser lines for use at any angle. The laser beam will blink every 3-5 seconds to remind it's not self-leveling now.
  • When connecting with Huepar APP, a lock icon will be displayed to remind user it is in manual mode now.
  • Note: Due to the design of the pendulum locking device, the laser tool can not be controlled to be turned on/off by Bluetooth,



Triple Power Supply

  • This laser tool utilizes the included large capacity lithium battery which is compatible with Samsung SB-L110 battery.
  • This laser tool comes with an holder for installing AA battery for using the tool.
  • Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
  • Charging protection help prevent the tool from overcharge.



Package Contents:

  • 1 x Huepar 603CG-BT 3D Cross Line Laser Level
  • 1 x Rechargeable Lithium Battery
  • 1 x Lithium Battery Charger
  • 1 x Power Adapter
  • 4 x AA (LR6) Batteries & 1 x AA Battery Holder
  • 1 x Magnetic Pivoting Base
  • 1 x Laser Target Plate
  • 1 x Lase Level User Manual
  • 1 x Huepar Bluetooth User Manual
  • 1 x Portable Bag



Technical Details
